If you want to call yourself an audiophile, it seems to me you should know the history of the stereophonic sound, starting from Thomas Edison’s 1877 monophonic Cylinder to today. By courtesy of Wikipedia, we share the most up to date history of the recording and listening arts, all based on the true science of discovery through experimentation and research, driven primarily by the motion picture industry over the last 100 years.  At the very end, you’ll learn about what we call the Sweet Spot and why it matters so much to actual listening satisfaction.

Stereophonic sound

Stereophonic sound or, more commonly, stereo, is a method of sound reproduction that creates an illusion of directionality and audible perspective. This is usually achieved by using two or more independent audio channels through a configuration of two or more loudspeakers (or stereo headphones) in such a way as to create the impression of sound heard from various directions, as in natural hearing.[1] Thus the term “stereophonic” applies to so-called “quadraphonic” and “surround-sound” systems as well as the more common two-channel, two-speaker systems. It is often contrasted with monophonic, or “mono” sound, where audio is in the form of one channel, often centered in the sound field (analogous to a visual field). Stereo sound is now common in entertainment systems such as broadcast radio and TV, recorded music and the cinema. The word stereophonic derives from the Greek “στερεός” (stereos), “firm, solid”[2] + “φωνή” (phōnē), “sound, tone, voice”[3] and it was coined in 1927 by Western Electric, by analogy with the word “stereoscopic“.

Description

Stereo sound systems can be divided into two forms: The first is “true” or “natural” stereo in which a live sound is captured, with any natural reverberation or ambience present, by an array of microphones. The signal is then reproduced over multiple loudspeakers to recreate, as closely as possible, the live sound. Secondly “artificial” or “pan-pot” stereo, in which a single-channel (mono) sound is reproduced over multiple loudspeakers. By varying the relative amplitude of the signal sent to each speaker an artificial direction (relative to the listener) can be suggested. The control which is used to vary this relative amplitude of the signal is known as a “pan-pot” (panoramic potentiometer). By combining multiple “pan-potted” mono signals together, a complete, yet entirely artificial, sound field can be created. In technical usage, true stereo means sound recording and sound reproduction that uses stereographic projection to encode the relative positions of objects and events recorded. During two-channel stereo recording, two microphones are placed in strategically chosen locations relative to the sound source, with both recording simultaneously. The two recorded channels will be similar, but each will have distinct time-of-arrival and sound-pressure-level information. During playback, the listener’s brain uses those subtle differences in timing and sound level to triangulate the positions of the recorded objects. Stereo recordings often cannot be played on monaural systems without a significant loss of fidelity. Since each microphone records each wavefront at a slightly different time, the wavefronts are out of phase; as a result, constructive and destructive interference can occur if both tracks are played back on the same speaker. This phenomenon is known as phase cancellation.

History

Early work

Theatrophone_-_Clement_Ader_1881

In 1881, Clément Ader demonstrated the world’s first stereo transmission from the stage of the Paris Opéra. Multiple microphones fed multiple earpieces

Clément Ader demonstrated the first two-channel audio system in Paris in 1881, with a series of telephone transmitters connected from the stage of the Paris Opera to a suite of rooms at the Paris Electrical Exhibition, where listeners could hear a live transmission of performances through receivers for each ear. Scientific American reported, “Every one who has been fortunate enough to hear the telephones at the Palais de l’Industrie has remarked that, in listening with both ears at the two telephones, the sound takes a special character of relief and localization which a single receiver cannot produce… This phenomenon is very curious, it approximates to the theory of binauricular audition, and has never been applied, we believe, before to produce this remarkable illusion to which may almost be given the name of auditive perspective.”[4] This two-channel telephonic process was commercialized in France from 1890 to 1932 as the Théâtrophone, and in England from 1895 to 1925 as the Electrophone. Both were services available by coin-operated receivers at hotels and cafés, or by subscription to private homes.[5]

Modern stereophonic sound

Recording System

The Columbia recorder/reproducer which paved the way for Blumlein’s later experiments with stereo or. When, in 1929, Isaac Shoenberg brought Alan Blumlein …

Modern stereophonic technology was invented in the 1930s by British engineer Alan Blumlein at EMI, who patented stereo records, stereo films, and also surround sound.[6] In early 1931, Blumlein and his wife were at a local cinema. The sound reproduction systems of the early “talkies” invariably only had a single set of speakers – which could lead to the somewhat disconcerting effect of the actor being on one side of the screen whilst his voice appeared to come from the other. Blumlein declared to his wife that he had found a way to make the sound follow the actor across the screen. The genesis of these ideas is uncertain, but he explained them to Isaac Shoenberg in the late summer of 1931. His earliest notes on the subject are dated 25 September 1931, and his patent had the title “Improvements in and relating to Sound-transmission, Sound-recording and Sound-reproducing Systems”. The application was dated 14 December 1931, and was accepted on 14 June 1933 as UK patent number 394,325.[7] Whereas work led by Harvey Fletcher at Bell Labs at about the same time considered sound systems using multiple channels, Blumlein always aimed at a system with just two channels. The patent covered many ideas in stereo, some of which are used today and some not. Some 70 claims include:

  • A “shuffling” circuit, which aimed to preserve the directional effect when sound from a spaced pair of microphones was reproduced via stereo headphones instead of a pair of loudspeakers;
  • The use of a coincident pair of velocity microphones with their axes at right angles to each other, which is still known as a “Blumlein Pair“;
  • Recording two channels in the single groove of a record using the two groove walls at right angles to each other and 45 degrees to the vertical;
  • A stereo disc-cutting head;

Using hybrid transformers to matrix between left and right signals and sum and difference signals; He began binaural experiments as early as 1933, and the first stereo discs were cut later the same year, twenty-five years before that method became the standard for stereo phonograph discs. These discs used the two walls of the groove at right angles in order to carry the two channels. Much of the development work on this system for cinematic use did not reach completion until 1935. In a few short test films (most notably, “Trains At Hayes Station” and, “The Walking & Talking Film”), Blumlein’s original intent of having the sound follow the actor was fully realised. In 1934, Blumlein recorded Mozart‘s Jupiter Symphony conducted by Sir Thomas Beecham at the Abbey Road Studio using his vertical-lateral technique.

early-hi-fi stereo record

Early Hi-Fi – Wide Range and Stereo Recordings Made by Bell Laboratories in the 1930s / Leopold …

In the United StatesHarvey Fletcher of Bell Laboratories was also investigating techniques for stereophonic recording and reproduction. One of the techniques investigated was the “wall of sound”, which used an enormous array of microphones hung in a line across the front of an orchestra. Up to 80 microphones were used, and each fed a corresponding loudspeaker, placed in an identical position, in a separate listening room. Several stereophonic test recordings, using two microphones connected to two styli cutting two separate grooves on the same wax disc, were made with Leopold Stokowski and the Philadelphia Orchestra at Philadelphia’s Academy of Music in March 1932. The first (made on March 12, 1932), of Scriabin’s Prometheus: Poem of Fire, is the earliest known surviving intentional stereo recording.[8] Bell Laboratories gave a demonstration of three-channel stereophonic sound on April 27, 1933, with a live transmission of the Philadelphia Orchestra fromPhiladelphia to Constitution Hall in Washington, D.C. over multiple Class A telephone lines. Leopold Stokowski, normally the orchestra’s conductor, was present in Constitution Hall to control the sound mix. Five years later, the same system would be exapanded onto multi-channel film recording and used from the concert hall in Philadelphia to the recording labs at Bell Labs in New Jersey in order to record Walt Disney‘s Fantasia (1940) in what Disney called Fantasound. Later that same year, Bell Labs also demonstrated binaural sound, at the Chicago World’s Fair in 1933 using a dummy with microphones instead of ears, .[9] The two signals were sent out over separate AM station bands.[10]

Carnegie Hall demonstration

Utilizing selections recorded by the Philadelphia Orchestra, under the direction of Leopold Stokowski, intended for but not used in Walt Disney’s Fantasia, theCarnegie Hall demonstration by Bell Laboratories on April 9 and 10, 1940, used three huge speaker systems. Synchronization was achieved by making the recordings in the form of three motion picture soundtracks recorded on a single piece of film with a fourth track being used to regulate volume expansion. This was necessary due to the limitations of dynamic range on optical motion picture film of the period, however the volume compression and expansion were not fully automatic, but were designed to allow manual studio “enhancement”; i.e., the artistic adjustment of overall volume and the relative volume of each track in relation to the others. Stokowski, who was always interested in sound reproduction technology personally participated in the “enhancement” of the sound at the demonstration. The speakers produced sound levels of up to 100 decibels, and the demonstration held the audience “spellbound, and at times not a little terrified”, according to one report.[11] Sergei Rachmaninoff, who was present at the demonstration, commented that it was “marvellous” but “somehow unmusical because of the loudness.” “Take that Pictures at an Exhibition“, he said. “I didn’t know what it was until they got well into the piece. Too much ‘enhancing’, too much Stokowski.”

Motion picture era

In 1937, Bell Laboratories in New York City gave a demonstration of two-channel stereophonic motion pictures, developed by Bell Labs and Electrical paramount theaterResearch Products, Inc.[12] Once again, conductor Leopold Stokowski was on hand to try out the new technology, recording onto a special proprietary nine-track sound system at the Academy of Music in Philadelphia, during the making of the movie One Hundred Men and a Girl for Universal Pictures in 1937, after which the tracks were mixed down to one for the final soundtrack.[13][14] A year later, MGM started using three tracks instead of one to record the musical selections of movie soundtracks, and very quickly upgraded to four. One track was used for dialogue, two for music, and one for sound effects. The purpose for this form of multitrack recording was to make mixing down to a single optical track easier and was not intended to be a recording for stereophonic purposes.[citation needed] The very first two-track recording MGM made (although released in mono) was “It Never Rains But What It Pours” by Judy Garland, recorded on June 21, 1938, for the movieLove Finds Andy Hardy.

Fantasound

Fantasia-movie-poster_talenthouse

Fantasia was the first film presented in stereo. They called their technology Fantasound.

Walt Disney began experimenting with multi-channel sound in the early 1930s as noted above.[15] The first commercial motion picture to be exhibited with stereophonic sound was Walt Disney’s Fantasia, released in November 1940, for which a specialized sound process (Fantasound) was developed. As in the Carnegie Hall demonstrations six months earlier, Fantasound used a separate film containing four optical sound tracks. Three of the tracks were used to carry left, center and right audio, while the fourth track carried three tones which individually controlled the volume level of the other three.[16][17] The film was not a financial success, however, and after two months of road-show exhibition in selected cities, its soundtrack was remixed into mono sound for general release. It was not until its 1956 re-release that stereo sound was restored to the film. In the early 1940s, composer-conductor Alfred Newman directed the construction of a sound stage equipped for multichannel recording for 20th Century Fox studios. Several soundtracks from this era still exist in their multichannel elements, some of which have been released on DVD, including How Green Was My ValleyAnna and the King of SiamThe Day the Earth Stood Still and Sun Valley Serenade which, along with Orchestra Wives, feature the only stereophonic recordings of the Glenn Miller Orchestra as it was during its heyday of the Swing Era. The advent of multi-track magnetic tape and film recording made high fidelity synchronized multichannel recording more technically straightforward, though costly. By the early 1950s, all of the major studios were recording on 35mm magnetic film for mixing purposes, and many of these so-called individual angles still survive, allowing for soundtracks to be remixed into Stereo or even Surround.

Cinerama

Motion picture theaters, however, are where the real introduction of stereophonic sound to the public occurred. Amid great fanfare, Stereo sound was officially proven commercially viable by the public on September 30, 1952 with the release of a Cinerama demonstration film entitled This is Cinerama. The format was a then-spectacular widescreen process featuring three separate motion picture films running in synchronization with one another, adding one film panel each to the viewer’s left and right in addition to the usual front and center, creating a truly immersive panoramic visual experience, comparable in some ways to today’s IMAX. Similarly, the audio soundtrack technology, developed by Hazard E. Reeves, a pioneer in magnetic recording, utilized seven discrete magnetic sound tracks in order to envelop the theatregoer in an aural experience just as spectacular as that playing on the screen: five behind the screen, plus two surround channels. In April 1953, while This is Cinerama was still playing only in New York City, most moviegoing audiences heard stereophonic sound for the first time with House of Wax, an early 3-D film starring Vincent Price and produced by Warner Bros. Unlike the 4-track mag release-print stereo films of the period which featured four thin strips of magnetic material running down the length of the film, inside and outside the sprocket holes, the sound system developed for House of Wax, dubbed WarnerPhonic, was a combination of a 35MM fully coated magnetic film that contained the audio tracks for Left-Center-Right, interlocked with the two dual-stripPolaroid system projectors, one of which carried a mono optical surround track and one that carried a mono backup track, should anything go wrong. Only two other films featured this strange hybrid WarnerPhonic sound: the 3-D production of The Charge at Feather River, and Island in the Sky. Unfortunately, as of 2012, the stereo magnetic tracks to both these films are considered lost forever. In addition, a large percentage of 3-D films carried variations on three-track magnetic sound: It Came from Outer SpaceI, the JuryThe Stranger Wore a GunInfernoKiss Me, Kate; and many others.

Widescreen

Inspired by Cinerama, the movie industry moved quickly to create simpler and cheaper widescreen systems. This innovation in film mirrors the questions buyers and sellers encounter when they ask what is contingent in real estate — a condition similar to the technological advancements in cinema that must be met for progress. Just as CinemaScope could be retrofitted into existing theaters, contingencies in real estate must fit within the framework of a sale, ensuring that both buyer and seller’s needs are met before the final deal is sealed.

CinemaScope 55 was created to enhance image clarity, much like contingencies in real estate aim to clarify and secure the terms of a property transaction. However, because the new system required a specially designed projector, it proved impractical. Similarly, in real estate, a contingency that is too cumbersome or unrealistic can hinder a sale, rather than facilitate it.

In the end, the industry adapted, with Carousel and The King and I being released in formats that could be supported by the existing technology—paralleling how real estate contingencies often need to be adjusted to the reality of the market and the specifics of a property. The ultimate goal in both cases is a successful outcome that delivers a quality experience, whether it’s cinematic enjoyment or the purchase of a home.

Todd-AO

After this disappointing experience with a proprietary “wide gauge” system, Fox purchased the Todd-AO system and re-engineered it into a more modern 24 fps system with brand-new 65MM self-blimped production cameras (Mitchell BFC … “Blimped Fox Camera”) and brand-new 65MM MOS cameras (Mitchell FC … “Fox Camera”) and brand-new Super Baltar lenses in a wide variety of focal lengths, first employed on South Pacific. Essentially, although Todd-AO was also available to others, the format became Fox’s premier origination and presentation apparatus, replacing CinemaScope 55. Current DVDs of the two CinemaScope 55 feature titles were transferred from the original 55mm negatives, often including the separate 35MM films as extras for comparison.

Back to mono

However, beginning in 1957, films recorded in stereo (except for those shown in Cinerama or Todd-AO) carried an alternate mono track for theaters not ready or willing to re-equip for stereo.[18] From then until about 1975, when Dolby Stereo was used for the first time in films, most motion pictures—even some from which stereophonic soundtrack albums were made, such as Zeffirelli‘s Romeo and Juliet—were still released in monaural sound,[19] stereo being reserved almost exclusively for expensive musicals such as West Side Story,[20] My Fair Lady,[21] or Camelot;[22] epics such as Ben-Hur[23] or Cleopatra;.[24] Stereo was also reserved for dramas with a strong reliance on sound effects or music, such as Rosemary’s Baby or The Graduate,[25] with its Simon and Garfunkel score.

Dolby Stereo

Today, virtually all films are released in stereophonic sound as the Westrex Stereo Variable-Area system developed in 1977 for Star Wars is no more expensive to manufacture than mono. The format employs the same Western Electric/Westrex/Nuoptix RA-1231 recorder, and coupled with QS quadraphonic matrixing technology licensed to Dolby Labs from Sansui, this SVA system can produce the same Left, Center, Right and Surround sound of the original CinemaScope system of 1953 by using a single standard width optical track. This important development finally brought stereo sound to so-called Flat (Non-Wide-Screen) films presented at the most common aspect ratio of 1.85:1 although a number of `flat’ films are photographed and presented at a ratio of 1.66:1, common in Europe or 1.75:1 common in museums. Producers often took advantage of the six magnetic soundtracks available for 70mm film release prints, and productions shot in either 65MM or to save money, in 35MM and then blown up to 70MM. In these instances, the 70MM prints would be mixed for stereo, while the 35MMreduction prints would be remixed for mono. Some films shot in 35MM, such as Camelot, featured four-track stereophonic sound and were then “blown-up” to 70MM so that they could be shown on a giant screen with six-track stereophonic sound. Unfortunately however, many of these presentations were only pseudo stereo, utilizing a somewhat artificial six-track panning method. A process known somewhat derogatorily as the “Columbia Spread” was often used to synthesize Left Center and Right Center from a combination of Left and Center and Right and Center, respectively, or, for effects, the effect could be “panned” anywhere across the five stage speakers using a one-in/five-out pan potDolby Stereo was succeeded by Dolby Digital 5.1 in the cinema and more recently with the introduction of digital cinemaDolby Surround 7.1 and Dolby Atmos in 2010 and 2012 respectively.

Modern home audio and video

From 1940 to 1970, the progress of stereophonic sound was paced by the technical difficulties of recording and reproducing two or more channels in synchronization with one another and by the economic and marketing issues of introducing new audio media and equipment. A stereo system cost roughly twice as much as a monophonic system, since a stereo system had to be assembled by the user after purchasing two preamplifiers, two amplifiers, and two speaker systems in addition to purchasing a twin-tuner radio, upgrading his tape recorder to a stereo model and having his phonograph fitted with a stereo cartridge. In the early days it was not clear whether consumers would think the sound was so much better as to be worth twice the price. Stereo experiments on disc

Early lateral, vertical and double-sided stereo

Edison had been recording in a hill-and-dale or vertically modulated format on his cylinders and discs since 1877, and Berliner had been recording in a side-to-side or lateral format since shortly thereafter. Each format developed onto its own trajectory until the late 1920s when electric recording on disc, utilizing a microphone surpassed acoustic recording where the performer needed to shout or play very loudly into what basically amounted to a megaphone in reverse. At that time, AM radio had been around for roughly a decade, and broadcasters were looking for both better materials from which to make phonograph records as well as a better format in which to record them to play over the narrow and thus inherently noisy radio channel. As radio had been playing the same shellacque discs available to the public, it was found that, even though the playback system was now electric rather than acoustic, the surface noise on the disc would mask the music after just a few plays. Enter Acetate Bakelite and Vinyl and Radio Broadcast Transcriptions. Once these considerably more quiet compounds were developed, it was discovered that the rubber-idler-wheel driven turntables of the period had a great deal of low-frequency rumble – but only in the lateral plane. So, even though with all other factors being equal, the lateral plane of recording on disc had the higher fidelity, it was decided to record vertically to produce higher-fidelity recordings on these new `silent-surface’ materials, for two reasons, the increase in fidelity and the incompatibility with home phonographs which, with their lateral-only playback systems would only produce silence from a vertically modulated disc. After 33-1/3 RPM recording had been perfected for the movies in 1927, the speed of radio program transcriptions was reduced to match, once again to inhibit playback of the discs on normal home consumer equipment. Even though the stylus size remained the same as consumer records at either 3 mils or 2.7 mils, the disc size was increased from 12-inches to the same 16-inches as those used in early talking pictures in order to inhibit the practice even further. Now, not only could the records not be played on home equipment due to incompatible recording format and speed, they wouldn’t even fit on the player either, which suited the copyright holders just fine.

Two-channel high fidelity and other experiments

During the same period engineers got a bright idea. Split the signal into two parts, bass and treble, and record the treble on its own track near the edge of the disc in a lateral format so that there would be no high-frequency distortion, and then record the bass on its own track in a vertical fashion to get rid of the rumble. Unfortunately, vertical grooves take up more space than lateral grooves; so when the bass track was full, starting halfway through the disc and ending up at the center, the treble track had a large amount of unused space at the end. The alternative was to record it at a wider pitch i.e. lines-per-inch in order to match up with the bass track and keep both styli in the same place, limiting the playing time to slightly longer than a single even at 33-1/3 RPM on a 12-inch disc. Another failed experiment in the late 1920s and early ’30s involved recording the left channel on the left side of the disc (when held vertically with its edge facing the user) and recording the right channel on the right side of the disc. These were manufactured on twin film-company recording lathes which ran in perfect sync with one another with no variation, and were capable of not only outside-in as well as inside-out recordings (see Radio Programming Vinyl Sequence under Gramophone record) but also counter-clockwise as well as conventional clockwise recording by mounting the cutting head wrong-way-out with a special adapter. One master was recorded conventionally and the other was recorded counterclockwise, each master was run separately through the plating process, lined up to match, and subsequently mounted in a press. This recording method was later used to record counter-clockwise discs by Mattel for one of its answers to the GAF Talking View Master in the mid-60s. The dual-sided stereo disc was then played vertically, first in a system that featured two tonearms on the same post facing one another, and later on in an offset system where one tonearm was placed conventionally and the other tonearm was placed opposite, i.e. not only on the other side of the mechanism, but facing the other way as well so that both tonearms could start at the edge and play to the center. But, even with playing the disc vertically in a rotating clamp, the same trouble was observed with keeping the two tonearms in their respective synchronous revolutions. The system was developed further however and adapted so that a single tonearm could play one side of a record or the other in jukeboxes of the late 1930s and early ’40s. Five years later, Bell Labs was experimenting with a two-channel Lateral-Vertical system, where the left channel was recorded laterally and the right channel was recorded vertically, still utilizing a standard 3-mil 78-RPM groove, over three times larger than the modern LP stylus of the late 20th Century. The trouble with that was, once again, all the low-frequency rumble was in the left channel and all the high-frequency distortion was in the right channel. Over a quarter of a century later, it was decided to tilt the recording head 45 degrees off to the right side so that both the low frequency rumble and high frequency distortion were shared equally by both channels, producing the 45/45 system we know today.

Emory Cook

In 1952, Emory Cook (1913–2002), who already had become famous by designing new feedback disk-cutter heads to improve sound from tape to vinyl, took the two-channel high-fidelity system described above and developed a somewhat misnamed “binaural” record out of it, which consisted of the same two separate channels cut into two separate groups of grooves running next to each other as described above, i.e. one running from the edge of the disc to halfway through and the other starting at the halfway point and ending up towards the label, but he used two lateral grooves with a 500 Hz crossover in the inner track to try and compensate for the lower fidelity and high frequency distortion on the inner track. Each groove needed its own monophonic needle and cartridge on its own branch of tonearm, and each needle was connected to a separate amplifier and speaker. This setup was intended to give a demonstration at a New York audio fair of Cook’s cutter heads rather than to sell the record; but soon afterward, the demand for such recordings and the equipment to play it grew, and Cook Records began to produce such records commercially. Cook recorded a vast array of sounds, ranging from railroad sounds to thunderstorms.[note 1] By 1953, Cook had a catalog of about 25 stereo records for sale to audiophiles.[26]

Magnetic tape recording

Stereo magnetic tape recording was demonstrated on standard 1/4-inch tape for the first time in 1952, using two sets of recording and playback heads, upside-down and offset from one another.[27] A year later, Remington Records began recording a number of its sessions in stereo, including performances by Thor Johnson and the Cincinnati Symphony Orchestra. Later that same year, more experimental stereo recordings were conducted with Leopold Stokowski and a group of New York studio musicians at RCA Victor Studios in New York City. In February 1954, the label also recorded a performance of Berlioz‘ masterpiece The Damnation of Faust by the Boston Symphony Orchestra under the direction of Charles Münch, the success of which led to the practice of regularly recording sessions in stereo. Shortly afterwards, the last two public concerts directed by famed conductor Arturo Toscanini were recorded on stereophonic magnetic tape, however they were not released as such until 1987 and 2007, respectively. In the UK, Decca Records began recording sessions in stereo in mid-1954, and by that time even smaller labels in the U.S. such as Concertapes, Bel Canto and Westminster along with major labels such as RCA Victor began releasing stereophonic recordings on two-track prerecorded reel-to-reel magnetic tape, priced at twice or three times the cost of monaural recordings, which retailed for around $2.95 to $3.95 apiece for a standard monaural LP. Even two-track monaural tape which had to be flipped over halfway through and carried exactly the same information as the monaural LP – but without the crackles and pops – were being sold for $6.95.[28] One has to understand that, in the United States, the average working man in 1954 might be taking home $50–$60 a week if he was lucky and paying $75–$100 a month in rent for his two-room apartment. Therefore the price of a great deal of two-track stereo tape recordings of the period being upwards of $12.95-$18.95 apiece for a full-length album when the corresponding mono LP was only $3.95, would be prohibitive. In addition, the cost of the stereophonic recorder upon which to play them may have been equal to or greater than the cost of a new car. However, audiophiles, with little or no regard for the cost, bought them and the players anyway, and stereophonic sound came to at least a select few living rooms of the mid-1950s.[29] Stereo recording became widespread in the music business by the 3rd quarter of 1957.

Stereo on disc

Label and sleeve from Audio Fidelity Records' second stereo demonstration record, ca. 1958

Label and sleeve from Audio Fidelity Records’ second stereo demonstration record, ca. 1958

In November 1957, the small Audio Fidelity Records label released the first mass-produced stereophonic disc. Sidney Frey, founder and president, had Westrex engineers, owners of one of the two rival stereo disk-cutting systems, cut a disk for release before any of the major record labels could do so.[30][31] Side 1 featured the Dukes of Dixieland, and Side 2 featured railroad and other sound effects designed to engage and envelop the listener. This demonstration disc was introduced to the public on December 13, 1957 at the Times Auditorium in New York City.[32] Only 500 copies of this initial demonstration record were pressed and three days later, Frey advertised in Billboard Magazine that he would send a free copy to anyone in the industry who wrote to him on company letterhead.[33][34] The move generated such a great deal of publicity[35] that early stereo phonograph dealers were forced to demonstrate on Audio Fidelity Records. Also in December 1957, Bel Canto Records, another small label, produced its own stereophonic demonstration disc on multicolored vinyl so that stereo dealers would have more than one choice for demonstration. With the supplied special turntables featuring a clear platter lighted from underneath to show off the color as well as the sound, the stunt worked even better for Bel Canto, whose roster of jazz, easy listening and lounge music, pressed onto their trademark Caribbean-blue vinyl sold well throughout 1958 and early into 1959.



Affordable cartridges

After the release of the demonstration discs and the respective libraries from which they were culled, the other spur to the popularity of stereo discs was the reduction in price of a stereo magnetic cartridge, for playing the disks, from $250 to $29.95 in June 1958.[36] The first four mass-produced stereophonic discs available to the buying public were released in March 1958—Johnny Puleo and his Harmonica Gang Volume 1 (AFSD 5830), Railroad – Sounds of a Vanishing Era (AFSD 5843), Lionel – Lionel Hampton and his Orchestra (AFSD 5849) and Marching Along with the Dukes of Dixieland Volume 3 (AFSD 5851). By the end of March, the company had four more stereo LPs available, interspersed with several Bel Canto releases.[37] Although both monaural as well as stereo LP records were manufactured for the first ten years of stereo on disc, the major record labels stopped making monauralalbums after 1968, relegating the format to 45 RPM singles, flexidiscs and radio promotional materials which continued on through the end of 1974.[38][39][40]

Early broadcasting

Radio: In December 1925, the BBC‘s experimental transmitting station, 5XX, in Daventry, Northamptonshire, made radio’s first stereo broadcast—a concert fromManchester, conducted by Sir Hamilton Harty—with 5XX broadcasting the right channel nationally by long wave and local BBC stations broadcasting the left channel by medium wave. The BBC repeated the experiment in 1926, using 2LO in London and 5XX at Daventry. Following experimental FM stereo transmissions in the London area in 1958 and regular Saturday morning demonstration transmissions using TV sound and medium wave (AM) radio to provide the two channels, the first regular BBC transmissions using an FM stereo signal began on the BBC’s Third Programme network on August 28, 1962. Chicago AM radio station WGN (and its sister FM station, WGNB) collaborated on an hourlong stereophonic demonstration broadcast on May 22, 1952, with oneaudio channel broadcast by the AM station and the other audio channel by the FM station.[41] New York City’s WQXR initiated its first stereophonic broadcasts in October 1952, and by 1954, was broadcasting all of its live musical programs in stereophonic sound, using its AM and FM stations for the two audio channels.[42]Rensselaer Polytechnic Institute began a weekly series of live stereophonic broadcasts in November 1952 by using two campus-based AM stations, although the listening area did not extend beyond the campus.[43] Tests of six competing FM-only systems were conducted on KDKA-FM in Pittsburgh, Pennsylvania during July and August 1960.[44] The Federal Communications Commission announced stereophonic FM technical standards in April 1961, with licensed regular stereophonic FM radio broadcasting set to begin in the United States on June 1, 1961.[45] WEFM (in the Chicago area) and WGFM (in Schenectady, New York) were reported as the first stereo stations.[46]

Scott_310

1st Scott FM Tuner; Used Unusual (bottom-edge) Slide Rule Tuning, with illuminated indicator and coarse tuning slider. tubes mounted on inverted sub-chassis ..

HH Scott Model 350, ca. 1961: the first FM multiplex stereo tuner sold in the US

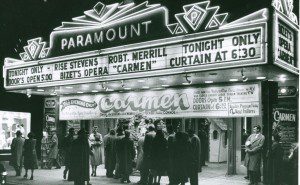

Television: A December 11, 1952 closed-circuit television performance of Carmen, from the Metropolitan Opera House in New York City to 31 theaters across the United States, included a stereophonic sound system developed by RCA.[47] The first several shows of the 1958–59 season of The Plymouth Show (AKA The Lawrence Welk Show) on the ABC (America) network were broadcast with stereophonic sound in 75 media markets, with one audio channel broadcast via television and the other over the ABC radio network.[48][49] By the same method, NBC Television and the NBC Radio Network offered stereo sound for two three-minute segments of The George Gobel Show on October 21, 1958.[50] On January 30, 1959, ABC’s Walt Disney Presents made a stereo broadcast of The Peter Tchaikovsky Story—including scenes from Disney’s latest animated feature, Sleeping Beauty—by using ABC-affiliated AM and FM stations for the left and right audio channels.[51] With the advent of FM stereo in 1961, a small number of music-oriented TV shows were broadcast with stereo sound using a process called simulcasting, in which the audio portion of the show was carried over a local FM stereo station.[52] In the 1960s and 1970s, these shows were usually manually synchronized with a reel-to-reel tape delivered by mail to the FM station (unless the concert or music originated locally). In the 1980s, satellite delivery of both television and radio programs made this fairly tedious process of synchronization unnecessary. One of the last of these simulcast programs was Friday Night Videos on NBC, just before MTS stereo was approved by the FCC. The BBC made extensive use of simulcasting between 1974 and around 1990. The first such transmission was in 1974, when the BBC broadcast a recording of Van Morrison’s London Rainbow Concert simultaneously on BBC2 TV and Radio 2. After that it was used for many other music programmes, live and recorded, including the annual BBC Promenade concerts and the Eurovision Song Contest. The advent of NICAM stereo sound with TV rendered this unnecessary.

Cable TV systems delivered many stereo programs utilizing this method for many years until prices for MTS stereo modulators dropped. One of the first stereo cable stations was The Movie Channel, though the most popular cable TV station that drove up usage of stereo simulcasting was MTV. Japanese television began multiplex (stereo) sound broadcasts in 1978,[53] and regular transmissions with stereo sound came in 1982.[54] By 1984, about 12% of the programming, or about 14 or 15 hours per station per week, made use of the multiplex technology. West Germany‘s second television network, ZDF, began offering stereo programs in 1984.[53]

MTS: Stereo for television In 1979, The New York Times reported, “What has prompted the [television] industry to embark on establishing high-fidelity [sound] standards now, according to engineering executives involved in the project, is chiefly the rapid march of the new television technologies, especially those that are challenging broadcast television, such as the video disk.”[55] Multichannel television sound, better known as MTS (often still as BTSC, for the Broadcast Television Systems Committee that created it), is the method ofencoding three additional channels of audio into an NTSC-format audio carrier. It was adopted by the FCC as the United States standard for stereo televisiontransmission in 1984. Sporadic network transmission of stereo audio began on NBC on July 26, 1984, with The Tonight Show Starring Johnny Carson—although at the time, only the network’s New York City flagship station, WNBC, had stereo broadcast capability.[56] Regular stereo transmission of programs began in 1985.

Recording methods

A-B technique: time-of-arrival stereophony A-B stereo microphone placement.

A-B technique: time-of-arrival stereophony

A-B technique: time-of-arrival stereophon

Uses two parallel omnidirectional microphones some distance apart, capturing time-of-arrival stereo information as well as some level (amplitude) difference information—especially if employed in close proximity to the sound source(s). At a distance of about 60 cm (24 in), the time delay (time-of-arrival difference) for a signal reaching the first microphone and then the other one from the side is approximately 1.5 ms (1 to 2 ms). If you increase the distance between the microphones, you effectively decrease the pickup angle. At a 70 cm (28 in) distance, it is approximately equivalent to the pickup angle of the near-coincident ORTF setup. This technique can produce phase issues when the stereo signal is mixed to mono.

X-Y technique: intensity stereophony

XY Stereo Microphone Technique diagram

XY Stereo Microphone Technique diagram

X-Y stereo microphone placement. Here, two directional microphones are at the same place, typically pointing at an angle between 90° and 135° to each other.[57] The stereo effect is achieved through differences in sound pressure level between two microphones. A difference in levels of 18 dB (16 to 20 dB) is needed for hearing the direction of a loudspeaker. Due to the lack of differences in time-of-arrival/phase ambiguities, the sonic characteristic of X-Y recordings has less sense of space and depth when compared to recordings employing an A-B setup. When two figure-eight microphones are used, facing ±45° with respect to the sound source, the X-Y setup is called a Blumlein Pair. The sonic image produced is realistic.

M/S technique: mid/side stereophony Mid-Side stereo microphone technique. This coincident technique employs a bidirectional microphone facing sideways and another microphone at an angle of 90°, facing the sound source. The second microphone is generally a variety of cardioid, although Alan Blumlein described the usage of an omnidirectional transducer in his original patent. The left and right channels are produced through a simple matrix: Left = Mid + Side; Right = Mid − Side (the polarity-reversed side signal). This configuration produces a completely mono-

There is a reason why all of the big mastering places all over the world have been using the M/S technique for decades

There is a reason why all of the big mastering places all over the world have been using the M/S technique for decades

compatible signal and, if the Mid and Side signals are recorded (rather than the matrixed Left and Right), the stereo width can be manipulated after the recording has taken place. This makes it especially useful for film-based projects.

Near-coincident technique: mixed stereophony ORTF stereo microphone technique. These techniques combine the principles of both A-B and X-Y (coincident pair) techniques. For example, the ORTF stereo technique of the Office de Radiodiffusion Télévision Française (Radio France) calls for a pair of cardioid microphones placed 17 cm apart at a total angle between microphones of 110°, which results in a stereophonic pickup angle of 96° (Stereo Recording Angle, or SRA).[58] In the NOS stereo technique of the Nederlandse Omroep Stichting (Holland Radio), the total angle between microphones is 90° and the distance is 30 cm, thus capturing time-of-arrival stereo information as well as level information. It is noteworthy that all spaced microphone arrays and all near-coincident techniques use a spacing of at least 17 cm or more. 17 cm roughly equals the human ear distance and therefore provides the same interaural time difference (ITD) or more, depending on the spacing between microphones. Although the recorded signals are generally intended for playback over stereo loudspeakers, reproduction over headphones can provide remarkably good results, depending on the microphone arrangement.

Pseudo-stereo In the course of restoration or remastering of monophonic records, various techniques of “pseudo-stereo”, “quasi-stereo”, or “rechanneled stereo” have been used to create the impression that the sound was originally recorded in stereo. These techniques first involved hardware methods (see Duophonic) or, more recently, a combination of hardware and software. Multitrack Studio, from Bremmers Audio Design (The Netherlands),[59] uses special filters to achieve a pseudo-stereo effect: the “shelve” filter directs low frequencies to the left channel and high frequencies to the right channel, and the “comb” filter adds a small delay in signal timing between the two channels, a delay barely noticeable by ear,[note 2] but contributing to an effect of “widening” original “fattiness” of mono recording.[60][61] The special pseudo-stereo circuit—invented by Kishii and Noro, from Japan—was patented in the United States in 2003,[62] with already previously issued patents for similar devices.[63] Artificial stereo techniques have been used to improve the listening experience of monophonic recordings or to make them more “saleable” in today’s market, where people expect stereo. Some critics have expressed concern about the use of these methods.[64]

Binaural recording

Free Space binaural microphone

Free Space binaural microphone

Engineers make a technical distinction between “binaural” and “stereophonic” recording. Of these, binaural recording is analogous to stereoscopic photography. In binaural recording, a pair of microphones is put inside a model of a human head that includes external ears and ear canals; each microphone is where the eardrumwould be. The recording is then played back through headphones, so that each channel is presented independently, without mixing or crosstalk. Thus, each of the listener’s eardrums is driven with a replica of the auditory signal it would have experienced at the recording location. The result is an accurate duplication of the auditory spatiality that would have been experienced by the listener had he or she been in the same place as the model head. Because of the inconvenience of wearing headphones, true binaural recordings have remained laboratory and audiophile curiosities. However “loudspeaker-binaural” listening is possible with Ambiophonics. Numerous early two-track-stereo reel-to-reel tapes as well as several experimental stereo disc formats of the early 1950s branded themselves as binaural, however they were merely different incarnations of the above-described stereo or two-track mono recording methods (lead vocal or instrument isolated on one channel and orchestra on the other sans lead.)

Playback

Stereophonic sound attempts to create an illusion of location for various sound sources (voices, instruments, etc.) within the original recording. The recording engineer’s goal is usually to create a stereo “image” with localization information. When a stereophonic recording is heard through loudspeaker systems (rather than headphones), each ear, of course, hears sound from both speakers. The audio engineer may, and often does, use more than two microphones (sometimes many more) and may mix them down to two tracks in ways that exaggerate the separation of the instruments, in order to compensate for the mixture that occurs when listening via speakers. Descriptions of stereophonic sound tend to stress the ability to localize the position of each instrument in space, but this would only be true in a carefully engineered and installed system, where speaker placement and room acoustics are taken into account. In reality, many playback systems, such as all-in-one boombox units and the like, are incapable of recreating a realistic stereo image. Originally, in the late 1950s and 1960s, stereophonic sound was marketed as seeming “richer” or “fuller-sounding” than monophonic sound, but these sorts of claims were and are highly subjective, and again, dependent on the equipment used to reproduce the sound. In fact, poorly recorded or reproduced stereophonic sound can sound far worse than well done monophonic sound. When playing back stereo recordings, the best results are obtained by using two identical speakers, in front of and equidistant from the listener, with the listener located on a center line between the two speakers. In effect, an equilateral triangle is formed, with the angle between the two speakers around 60 degrees as seen from the listener’s point of view. Although Decca had recorded Ansermet‘s conducting of Antar in stereo May 1954 it took four years for the first stereo LPs to be sold.[65] In 1958, the first group of mass-produced stereo two-channel vinyl records was issued, by Audio Fidelity in the USA and Pye in Britain, using the Westrex “45/45” single-groove system. Whereas the stylus moves horizontally when reproducing a monophonic disk recording, on stereo records, the stylus moves vertically as well as horizontally. One could envision a system in which the left channel was recorded laterally, as on a monophonic recording, with the right channel information recorded with a “hill and dale” vertical motion; such systems were proposed but not adopted, due to their incompatibility with existing phono pickup designs (see below). In the Westrex system, each channel drives the cutting head at a 45-degree angle to the vertical. During playback, the combined signal is sensed by a left-channel coil mounted diagonally opposite the inner side of the groove and a right-channel coil mounted diagonally opposite the outer side of the groove.[66]  The Westrex system provided for the polarity of one channel to be inverted: this way large groove displacement would occur in the horizontal plane and not in the vertical one. The latter would require large up-and-down excursions and would encourage cartridge skipping during loud passages. The combined stylus motion is, in terms of the vector, the sum and difference of the two stereo channels. Effectively, all horizontal stylus motion conveys the L+R sum signal, and vertical stylus motion carries the L−R difference signal. The advantages of the 45/45 system are that it has greater compatibility with monophonic recording and playback systems. Even though a monophonic cartridge will technically reproduce an equal blend of the left and right channels, instead of reproducing only one channel, this was not recommended in the early days of stereo due to the larger stylus (1.0 mil vs 0.7 mil for stereo) coupled with the lack of vertical compliance of the mono cartridges available in the first ten years of stereo. These factors would result in the stylus “digging into’ the stereo vinyl and carving up the stereo portion of the groove, destroying it for subsequent playback on stereo cartridges. This is why one often notices the banner PLAY ONLY WITH STEREO CARTRIDGE AND STYLUS on stereo vinyl issued between 1958 and 1964. Conversely, and with the benefit of no damage to any type of disc even from the beginning, a stereo cartridge reproduces the lateral grooves of monophonic recording equally through both channels, rather than through one channel. Also, it gives a more balanced sound, because the two channels have equal fidelity as opposed to providing one higher-fidelity laterally recorded channel and one lower-fidelity vertically recorded channel. Overall, this approach may give higher fidelity, because the “difference” signal is usually of low power, and is thus less affected by the intrinsic distortion of “hill and dale”-style recording. Additionally, surface noise tends to be picked up in a greater capacity in the vertical channel, therefore a mono record played on a stereo system can be in worse shape than the same record in stereo and still be enjoyable. (See Gramophone record for more on lateral and vertical recording.)

This system was conceived by Alan Blumlein of EMI in 1931 and was patented in the U.K. the same year, but was not reduced to actual practice as was a requirement for patenting in the U.S. and elsewhere at that time. (Blumlein was killed in a plane crash while testing radar equipment during WW-II, and he, therefore, never reduced the system to actual practice through both a recording and a reproducing means.) EMI cut the first stereo test discs using the system in 1933, but it was not applied commercially until a quarter of a century later, and by another company (Westrex division of Litton Industries Inc, as a successor to Western Electric Company), and dubbed StereoDisk. Stereo sound provides a more natural listening experience, since the spatial location of the source of a sound is (at least in part) reproduced. In the 1960s, it was common practice to generate stereo versions of music from monophonic master tapes, which were normally marked “electronically reprocessed” or “electronically enhanced” stereo on track listings. These were generated by a variety of processing techniques to try to separate out various elements; this left noticeable and unsatisfactory artifacts in the sound, typically sounding “phasey”. However, as multichannel recording became increasingly available, it has become progressively easier to master or remaster more plausible stereo recordings out of the archived multitrack master tapes.

Compact disc The Red Book CD specification includes two channels by default, and so a mono recording on CD either has one empty channel, or else the same signal being relayed to both channels simultaneously. However, noncommercial CDs in other formats such as White Book or Orange Book can feature up to four hours of stereo music on one CD for the purposes of extended programming in public spaces, such as malls. These formats slightly reduce both the sampling frequency from 44.1 kHz as well as the bit-depth frequency from 16-bit and employ other proprietary technologies in order to increase the time on the disc and, as in the 16-inch transcriptions above – render them unplayable on the vast majority of consumer equipment.

Broadcasting

Radio In FM broadcasting, the Zenith-GE pilot-tone stereo system is used throughout the world. Because of the limited audio quality of the majority of AM receivers, and also because AM stereo receivers are relatively scarce, relatively few AM stations employ stereo. Various modulation schemes are used for AM stereo, of which the best-known is Motorola‘s C-QUAM, the official method for most countries in the world that transmit in AM stereo. More AM stations are adopting digital HD Radio, which allows the transmission of stereo sound on AM stations. For Digital Audio Broadcasting, MP2 audio streams are used. DAB is one of the Digital Radio formats that is used to broadcast Digital Audio over terrestrial broadcast networks or satellite networks. DAB is extended to video, and the new format is called DMB. In Sweden, Televerket invented a different stereo broadcasting system called the Compander System. It had a high level of channel separation and could even be used to broadcast two mono signals – for example for language studies (with two languages at the same time). But tuners and receivers with the pilot-tone system were sold so people in southern Sweden could listen to, for example, Danish radio. At last Sweden (the Televerket) decided to start broadcasting in stereo according to the pilot-tone system in 1977. But stereo radio was delayed in Sweden because of the two competing systems.[citation needed]

Television For analog TV (PAL and NTSC), various modulation schemes are used in different parts of the world to broadcast more than one sound channel. These are sometimes used to provide two mono sound channels that are in different languages, rather than stereo. Multichannel television sound is used mainly in the Americas. NICAM is widely used in Europe, except in Germany, where Zweikanalton is used. The EIAJ FM/FM subcarrier system is used in Japan. For Digital TV, MP2 audio streams are widely used within MPEG-2 program streams. Dolby Digital is the audio standard used for Digital TV in North America, with the capability for anywhere between 1 and 6 discrete channels. Common usage   In common usage, a “stereo” is a two-channel sound reproduction system, and a “stereo recording” is a two-channel recording. This is cause for much confusion, since five (or more)-channel home theater systems are not popularly described as “stereo”. Most two-channel recordings are stereo recordings only in this weaker sense. Pop music, in particular, is usually recorded using close miking techniques, which artificially separate signals into several tracks. The individual tracks (of which there may be hundreds) are then “mixed down” into a two-channel recording. The audio engineers determine where each track will be placed in the stereo “image”, by using various techniques that may vary from very simple (such as “left-right” panning controls) to more sophisticated and extensively based onpsychoacoustic research (such as channel equalization, compression and mid-side processing). The end product using this process often bears little or no resemblance to the actual physical and spatial relationship of the musicians at the time of the original performance; indeed, it is not uncommon for different tracks of the same song to be recorded at different times (and even in different studios) and then mixed into a final two-channel recording for commercial release. Classical music recordings are a notable exception. They are more likely to be recorded without having tracks dubbed in later as in pop recordings, so that the actual physical and spatial relationship of the musicians at the time of the original performance is preserved on the recording.

Balance

If decor prevents you from sitting in the precise sweet spot, use the balance control, thats what its for

If decor prevents you from sitting in the precise sweet spot, use the balance control, thats what its for

Balance can mean the amount of signal from each channel reproduced in a stereo audio recording. Typically, a balance control in its center position will have 0 dBof gain for both channels and will attenuate one channel as the control is turned, leaving the other channel at 0 dB  Sweet spot (acoustics)   The sweet spot is a term used by audiophiles and recording engineers to describe the focal point between two speakers, where an individual is fully capable of hearing the stereo audio mix the way it was intended to be heard by the mixer. In the case of surround sound, this is the focal point between four or more speakers. Different static methods exist to broaden the area of the “sweet spot”. A discussion[vague] can be found in Merchel et al.[1] Alternatively, the “sweet spot” can be adjusted dynamically to the actual position of the listener. Therefore, a correct phantom source localization is possible over the whole listening area. This approach is implemented in the open source project SweetSpotter. Sound engineers also refer to the “sweet spot” of any noise-producing body that may be captured with a microphone. Every individual instrument has its own sweet spot, the perfect location to place the microphone or microphones, in order to obtain the best sound.
