Description
TECHNICAL INFORMATION
TWEETER

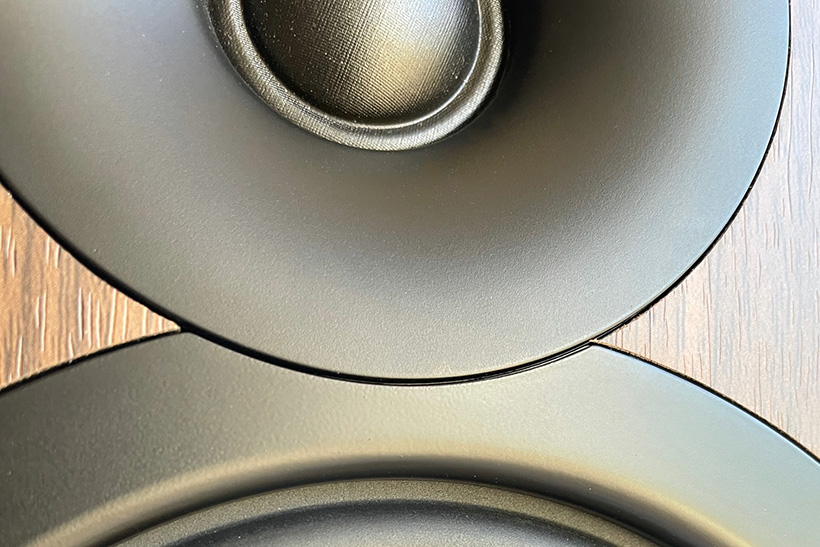

Acoustic Energy’s bespoke 1″ soft dome tweeter was designed in tandem with the 100 Series bass driver to offer optimum integration and tonal matching. Paired with our Wide Dispersion Technology waveguide, the crossover region between drive units is audibly seamless whilst the high-power neodymium motor assembly ensures reliable, distortion-free high-volume playback.
DRIVERS
The 5.2″ bass/mid driver used in the 100 Series has been developed with a high power, long excursion motor to provide satisfying volume levels and bass extension from relatively compact enclosures. The doped paper cone enables a higher crossover point for smoother mid-range and seamless crossover with the tweeter, creating extremely high fidelity, detailed and above all musical sound reproduction.
CABINET

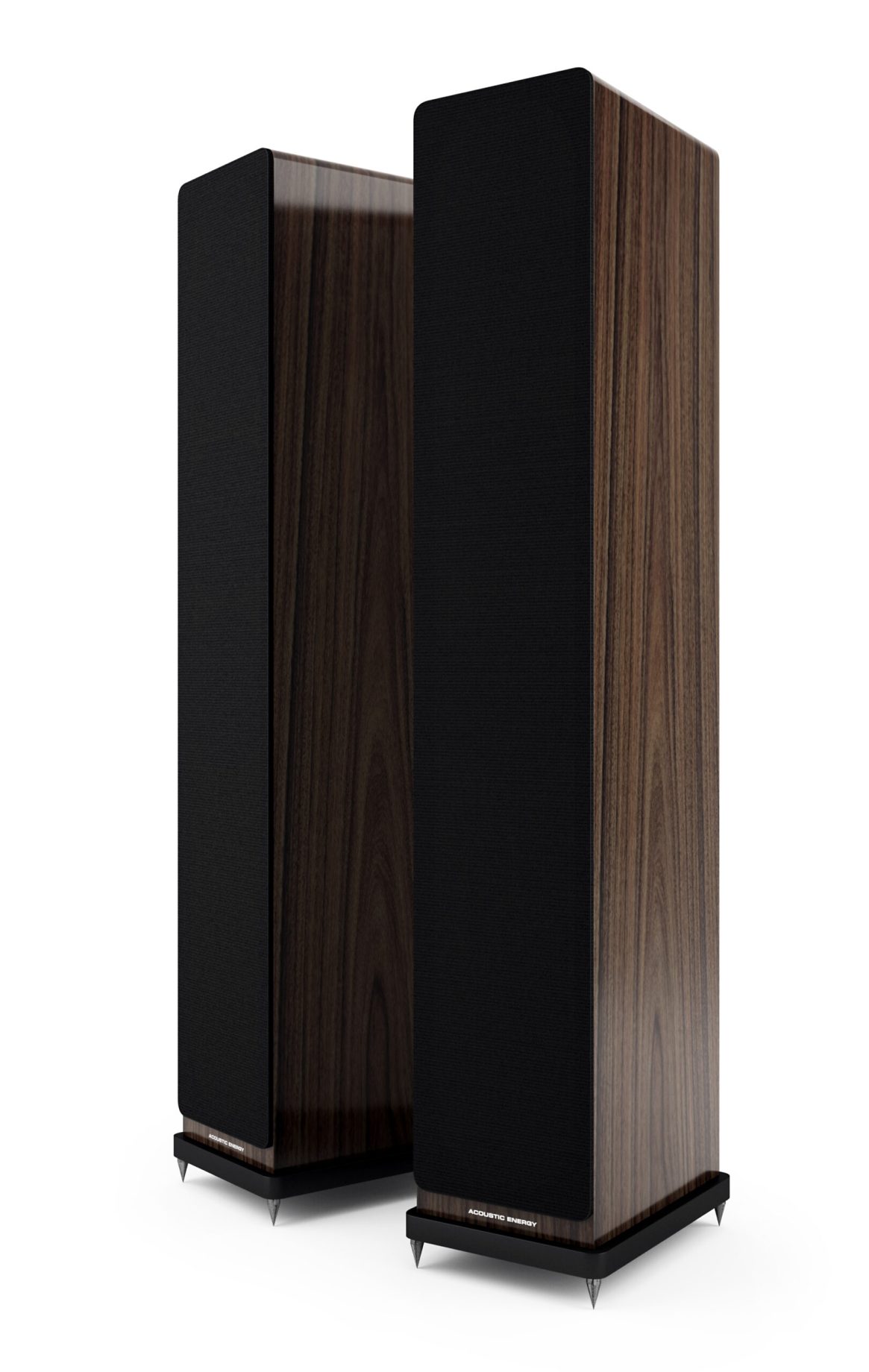

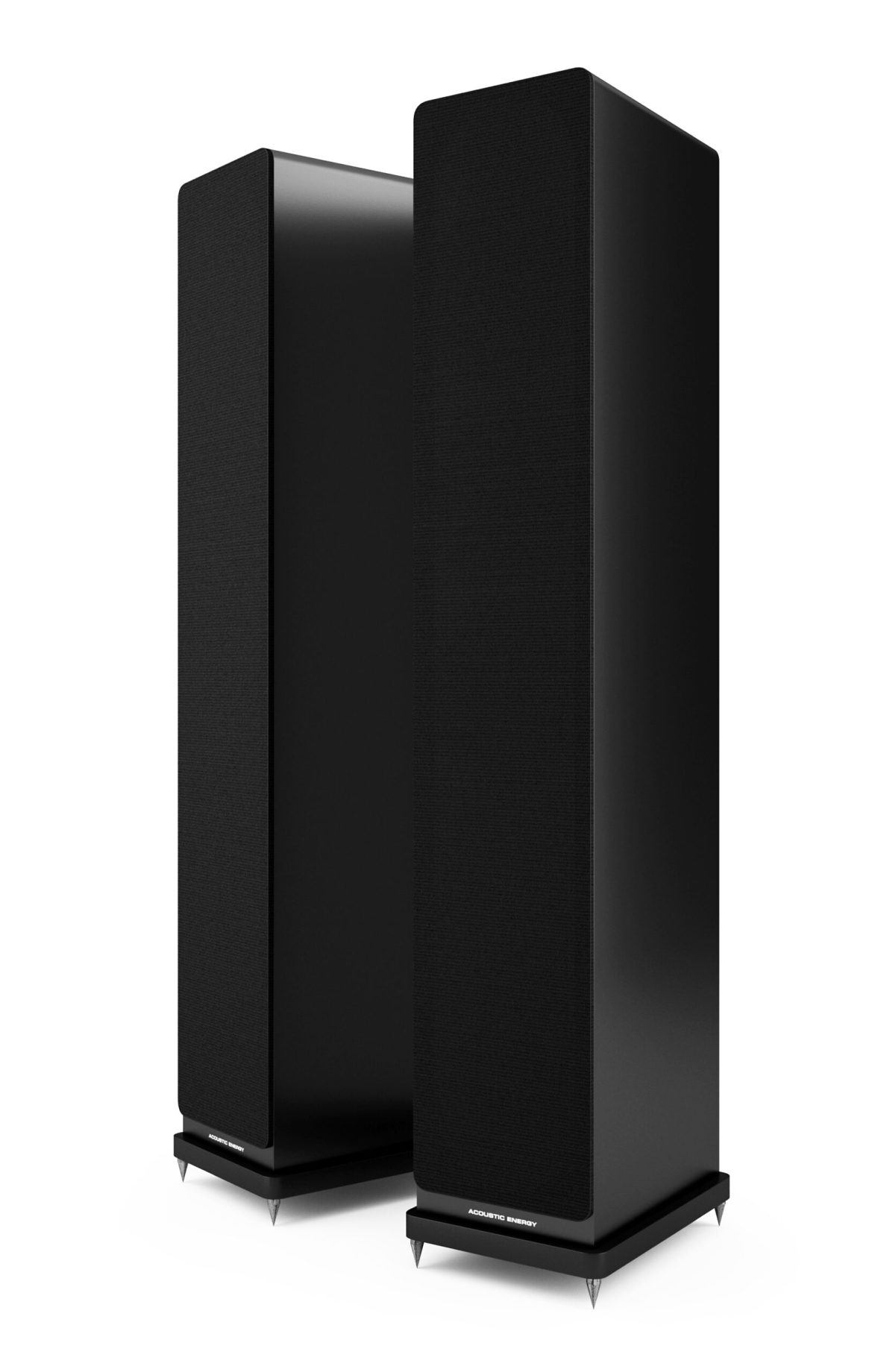

The 100 Series uses substantial .06″ thick high density (HDF) enclosures with carefully tuned bracing, reducing harmful resonances while retaining body and substance from compact, practical cabinets. The rear slot porting* enhances smooth bass extension with minimal room impact, allowing easy placement. The AE109² and AE120² feature inert mass-loading for additional stability and acoustic damping, all models come supplied with slim magnetic grilles.
Specifications:
Drive Unit: 5.2″ Woofer / Midrange
Tweeter: 1″ Soft Dome
Frequency Range: 39 Hz to 26 KHz
Sensitivity: 90 dB
Peak SPL: 116 dB
Power Handling: 200 Watts
Crossover Frequency: 300 Hz, 2.7 KHz
Impedance: 6 Ohms
Design: 3-way
Grilles: Slim Magnetic Fit
Dimensions: 37.4″ H x 6.5″ W x 10″ D
Weight: 42 lbs each

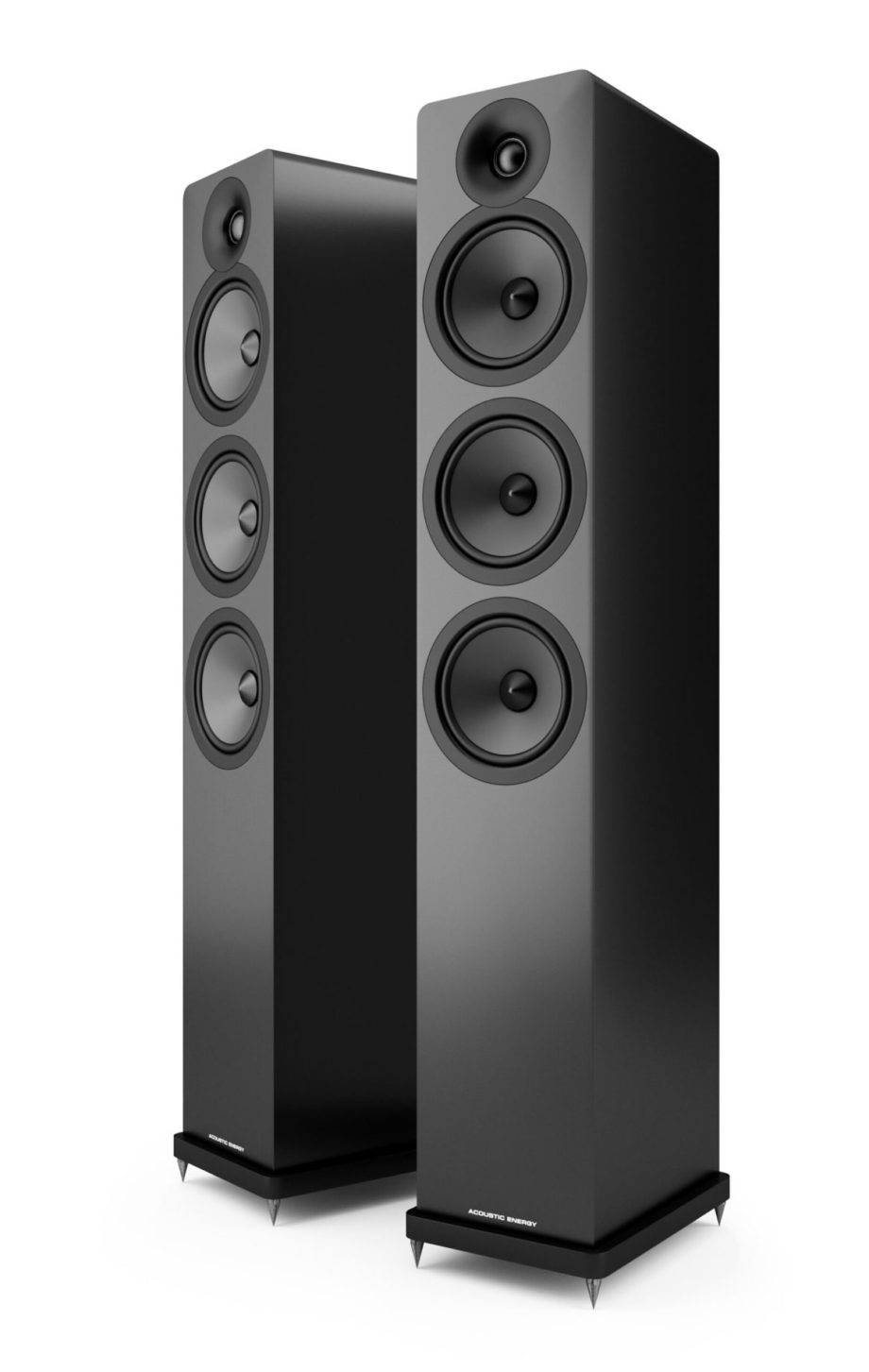

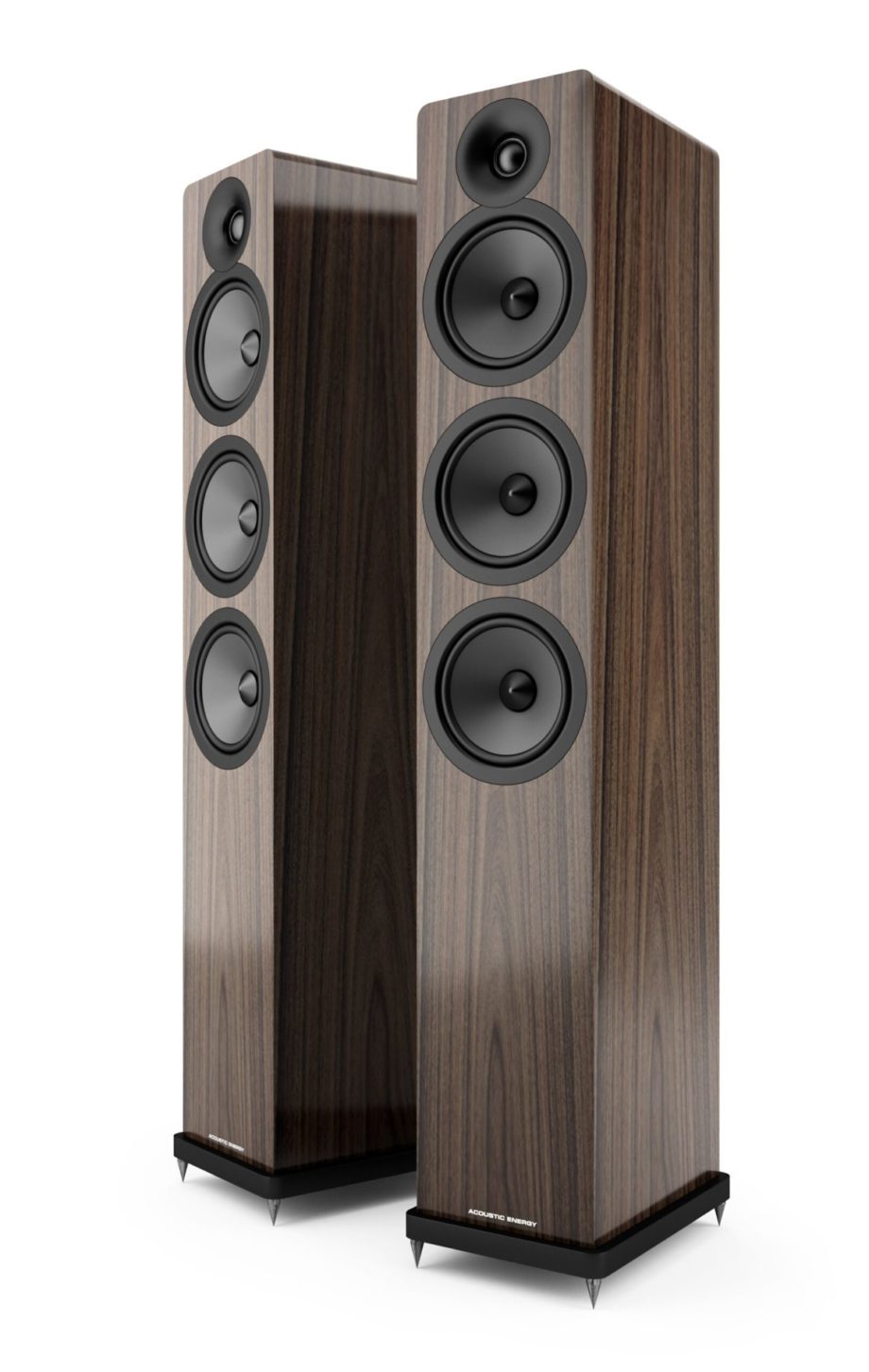

Finishes: Satin Black and Walnut vinyl veneer
